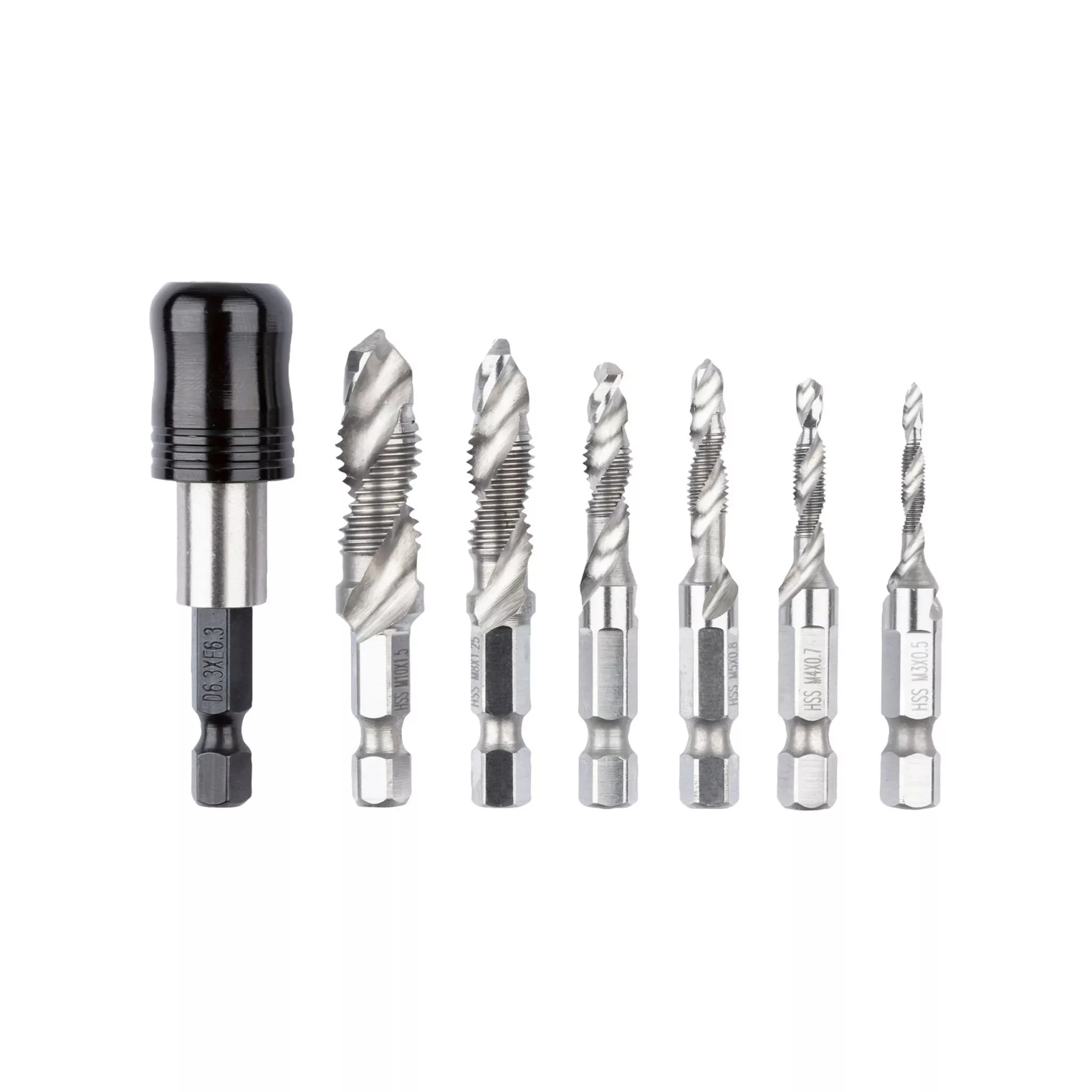

Combination Tap Set 7pc

JHK-24757 Combination Tap Set 7pc
For core drilling, thread cutting and deburring in one operation
Set consists of:
6 pc Combination Taps
Sizes:
M3 x 0,5 / Length: 53,9mm / Working Length: 26 mm / Weight: 7,0 g
M4 x 0,7 / Length: 53,7mm / Working Length: 26 mm / Weight: 7,4 g
M5 x 0,8 / Length: 55,2mm / Working Length: 28 mm / Weight: 7,8 g
M6 x 1,0 / Length: 55,7mm / Working Length: 29 mm / Weight: 8,4 g
M8 x 1,25 / Length: 57,3mm / Working Length: 30 mm / Weight: 10,3 g
M10 x 1,5 / Length: 59.5mm / Working Length: 31 mm / Weight: 14,5 g
1 pc Quick-change Bit Holder
Connection 1/4″ / 6,25 mm
Length: 60 mm
Weight: 32 g
Technical data:
Nominal Ø: 2,5 / 3,3 / 4,2 / 5,0 / 6,8 / 8,5 mm
Total Length: 53,9 / 53,7 / 55,2 / 55,7 / 57,3 / 59,5 mm
Shank Length: 22 mm
Max. Concentricity Deviation: 0,1 mm
Tap hardness: min. 750 HV
Point grinding: 135° degrees
Connection: 1/4″ hexagonal shank
Net weight: 105 g
Very good centring properties
Good chip removal
Low risk of jamming
1/4″ drive suitable for holders according to DIN 3126-D 6.3 (ISO 1173)
Quick-change bit holder
Quick bit change (one-hand operation)
Packed safely in new designed plastic case with sliding closure
Materials:
Combination Tap: HSS 4341 Steel
Bit Holder: CR-V steel
Plastic Storage Case: PP
Colours:
Combination Tap: Silver
Bit Holder: Black (RAL 9005-P) / Silver
Plastic case: Red (PQ-704 C)
